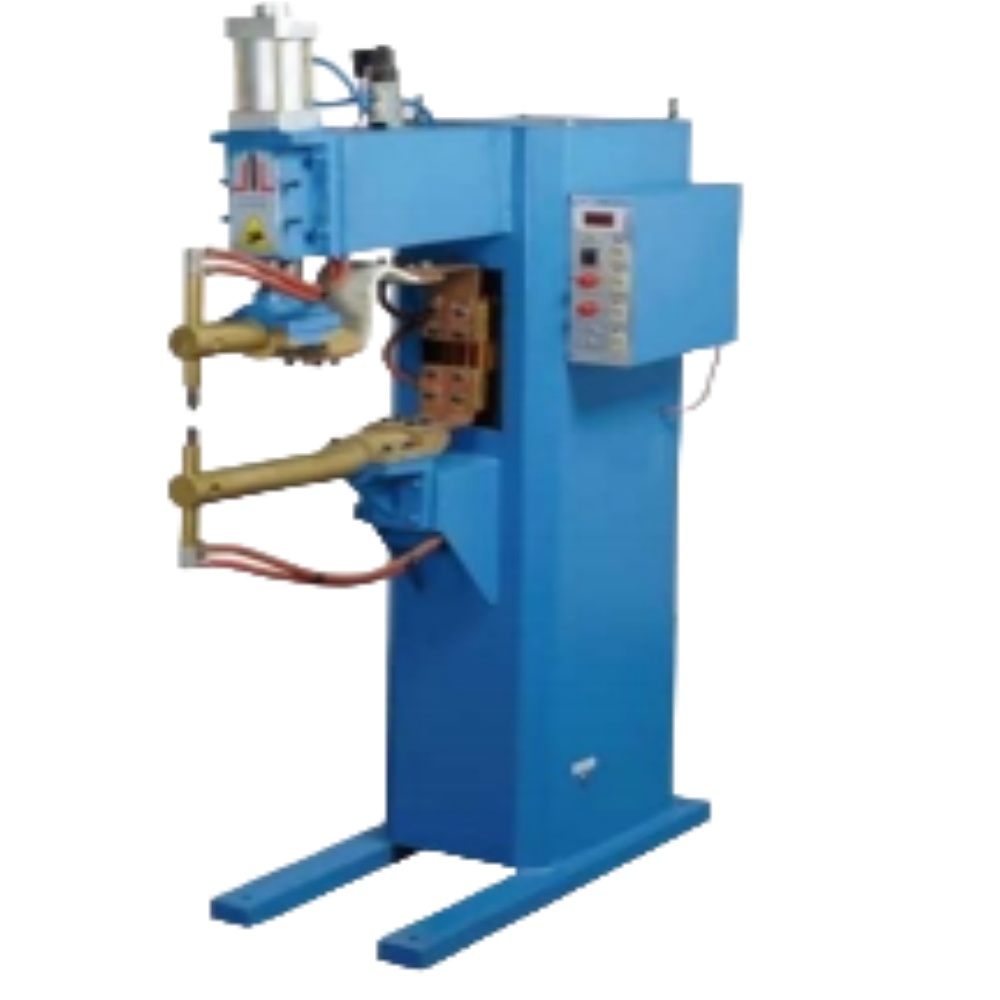

Spot welder for round air pipe
This round duct spot welding machine is used for welding vertical seam of round duct.

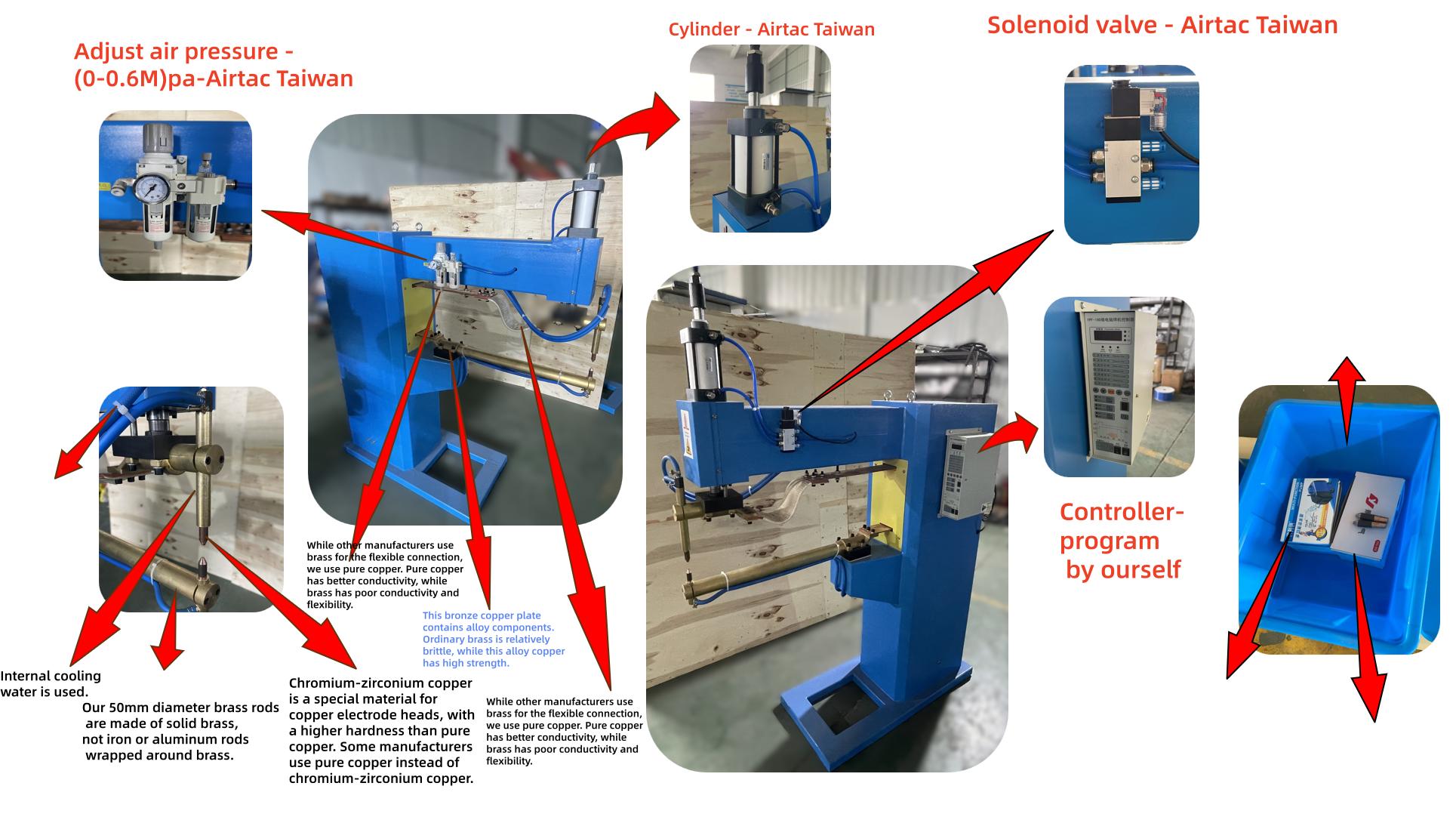

1. Our 50mm diameter brass rods are made of solid brass, not iron or aluminum rods wrapped around brass.
2. While other manufacturers use brass for the flexible connection, we use pure copper. Pure copper has better conductivity, while brass has poor conductivity and flexibility.
3. This bronze copper plate contains alloy components. Ordinary brass is relatively brittle, while this alloy copper has high strength.
4. Chromium-zirconium copper is a special material for copper electrode heads, with a higher hardness than pure copper. Some manufacturers use pure copper instead of chromium-zirconium copper.
5. Solenoid valves and cylinders use Taiwan AirTAC.
DN-35 Model | |
Rated capacity (kVA) | 35 |
Input voltage (V) | Single-phase 380V 50Hz |
Input current (A) | 92 |
No-load voltage (V) | 4.2 |
Duty cycle | 20% |
Maximum welding thickness (mm) | 2+2（stainless steel）,1.5+1.5（galvanized steel） |
Weight (kg) | 270 |
DN-50 Model | |
Rated capacity (kVA) | 50 |
Input voltage (V) | Single-phase 380V 50Hz |
Input current (A) | 131 |
No-load voltage (V) | 5 |
Duty cycle | 20% |
Maximum welding thickness (mm) | 3+3（stainless steel）,2+2（galvanized steel） |
Weight (kg) | 320 |
DN-75 Model | |
Rated capacity (kVA) | 75 |
Input voltage (V) | Single-phase 380V 50Hz |
Input current (A) | 197 |
No-load voltage (V) | 6.3 |
Duty cycle | 20% |
Maximum welding thickness (mm) | 4+4（stainless steel）,3+3（galvanized steel） |
Weight (kg) | 370 |
