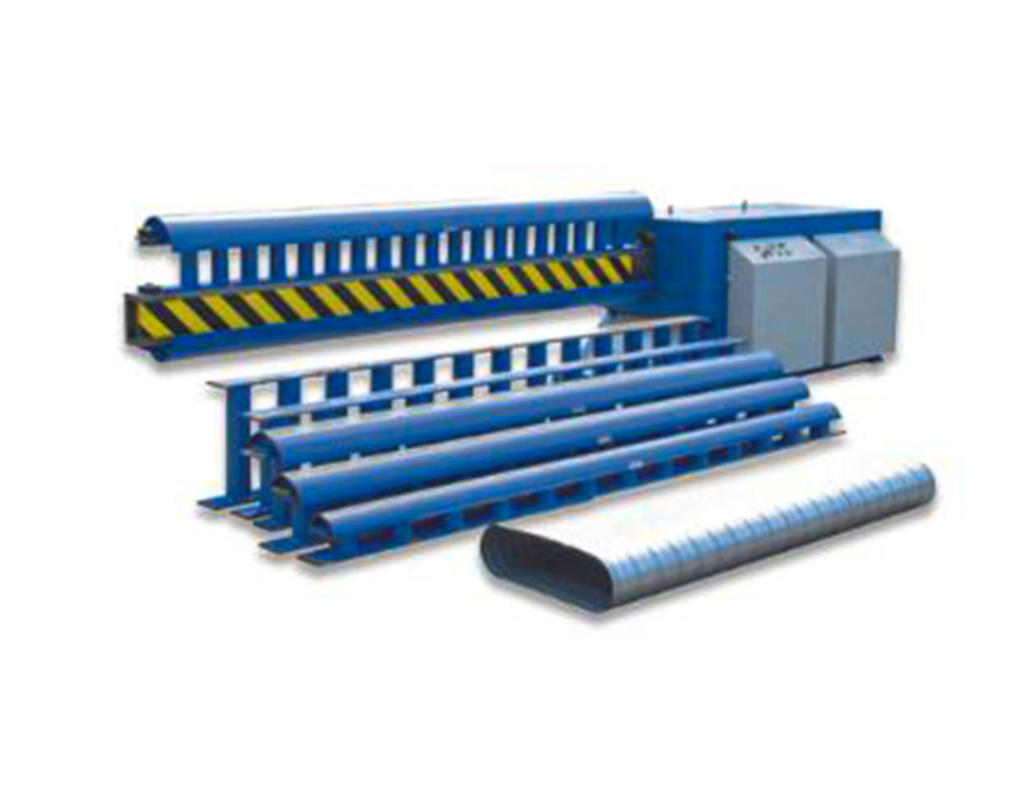

Spiral duct oval machine

Spiral duct oval machine transforms smooth and corrugated round spiral duct into the Flat-oval duct. Machine control is by PLC, and the LCD UNIT on the operator's panel stores all set parameters for easy recall by the operator when required.

Product Description of Spiral Round Flat Oval Duct Machine

•

•  Oval duct machine will satisfy most ductwork requirements in the Heating, Ventilating and Air-Conditioning industry.

• It will adjust to a variety of Round Duct sizes between 18”(450mm)

• and 60”(1500mm) diameter into Flat-Oval Ductwork.

 Main Technical Parameters of Spiral Round Flat Oval Duct Machine

It’s suitable for the ovalizer duct manufacture. After spiral duct, the ovalizer duct machine expands it into standard size. With the character of good shape, high efficiency, easy operation. It’s indispensable for duct manufacture.

Small compact helix oval duct machine can satisfy requirements of most ductwork. The formed diameter is between 450mm and 1500mm.

Small compact helix ovalizer requires little attention on manufacture site. It can process duct with width of
3.6m, thickness of 1.25mm.

In term of your requirements, we can offer two types for your choosing.
