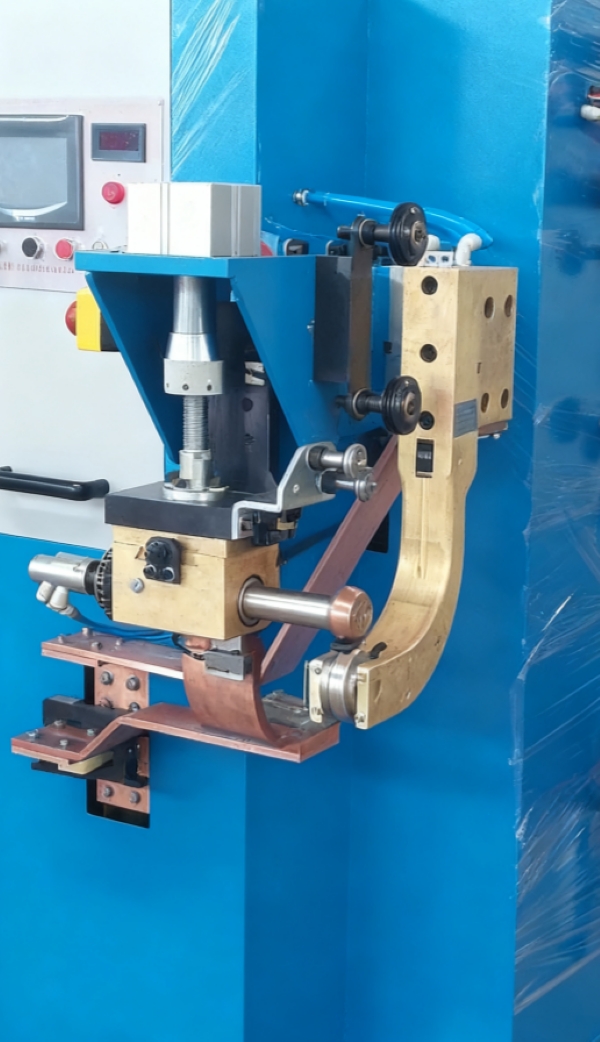

Elbow Welding Machine
The weld is clean and can be set for continuous welding and seam welding.
Copper wire welding protection surface galvanized layer.
Medium frequency welding to ensure stable output of welding power.

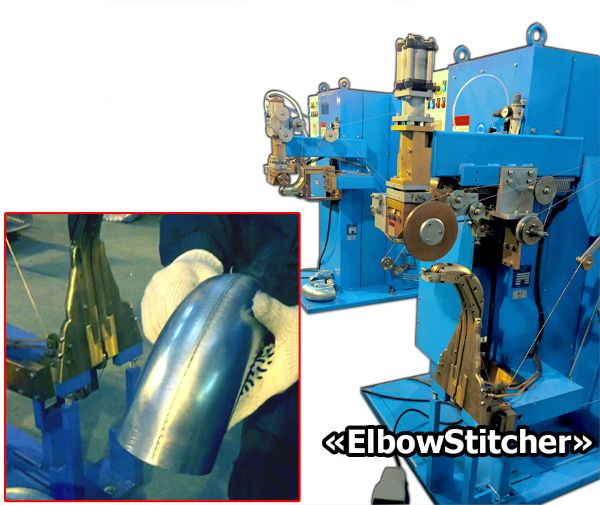

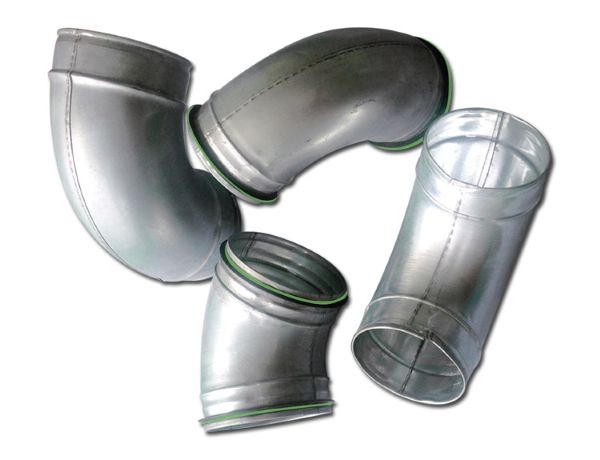

The elbow welder is mainly used for the joint welding of the punching pieces elbow, and the inner welder and the outer welder to make the complete elbow.
| Power | 380V 50Hz 3P |
| Welding Elbow Diameters | ∅80-∅250 |
| Welding Elbow Angle | 45° 90° |
| Welding Thickness | Middle Steel :0.5-0.8mm |
| Galvanized Steel l:0.5-0.8mm | |
| Stainless Steel :0.4-0.6mm | |
| Welding Speed | 3-9m/min |
| Overlap Welding Width | 6mm |
| Copper Wire Diameter | ∅2.0-∅2.6mm |
| Cooling Water | 0.4Mpa 8.5L/Min |
| Air Compress | 0.8Mpa 600L/min≦20℃ |
| Welding Power | 45KVA |
| Weight | 2.5T |
