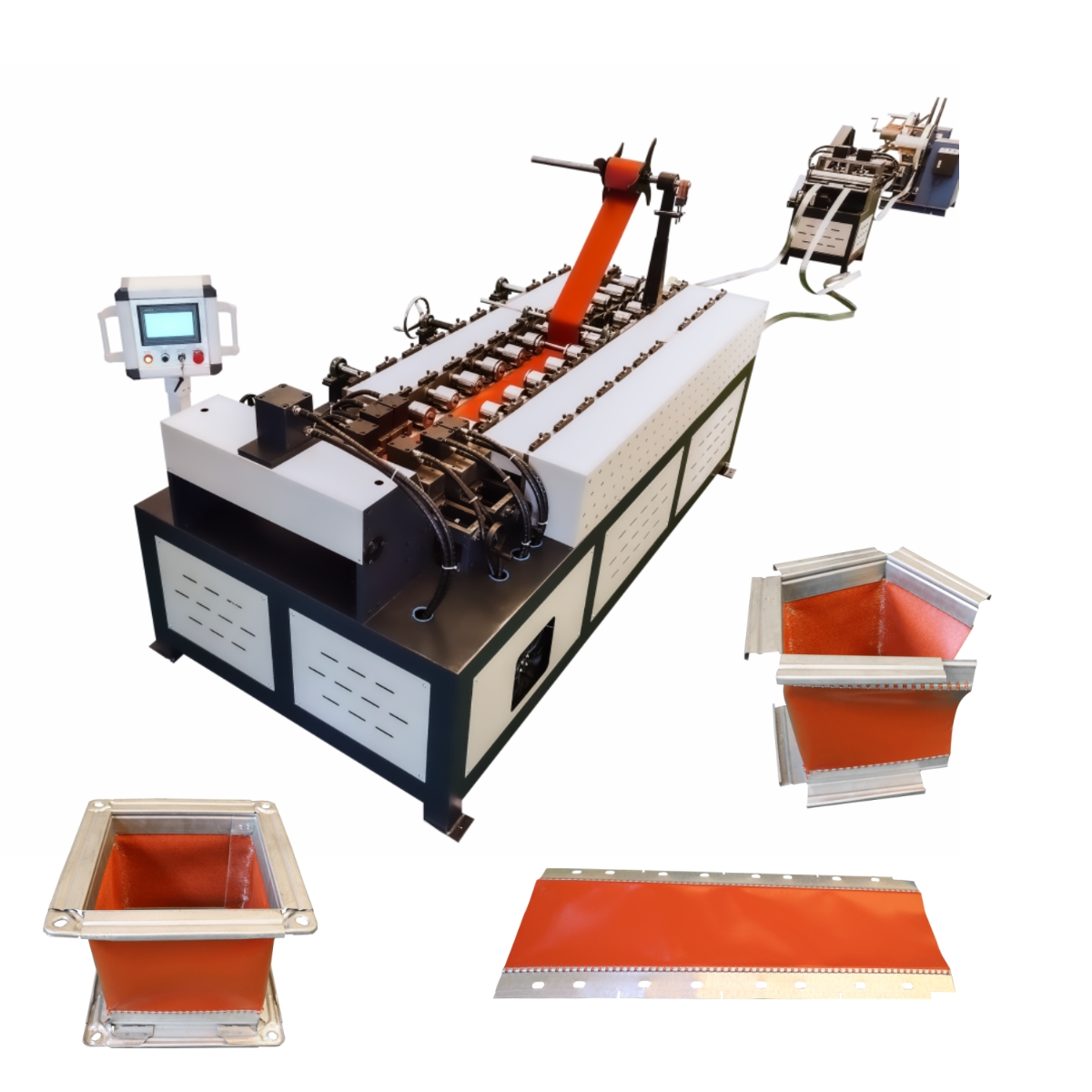

Flexible Air Duct Connector with Flange Hole Punching Fuction

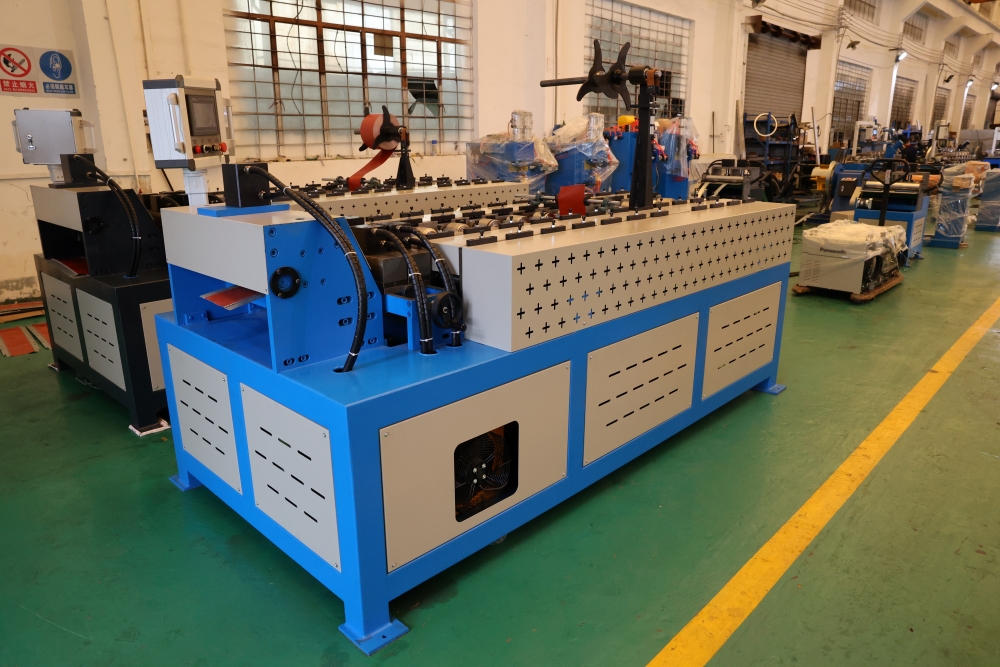

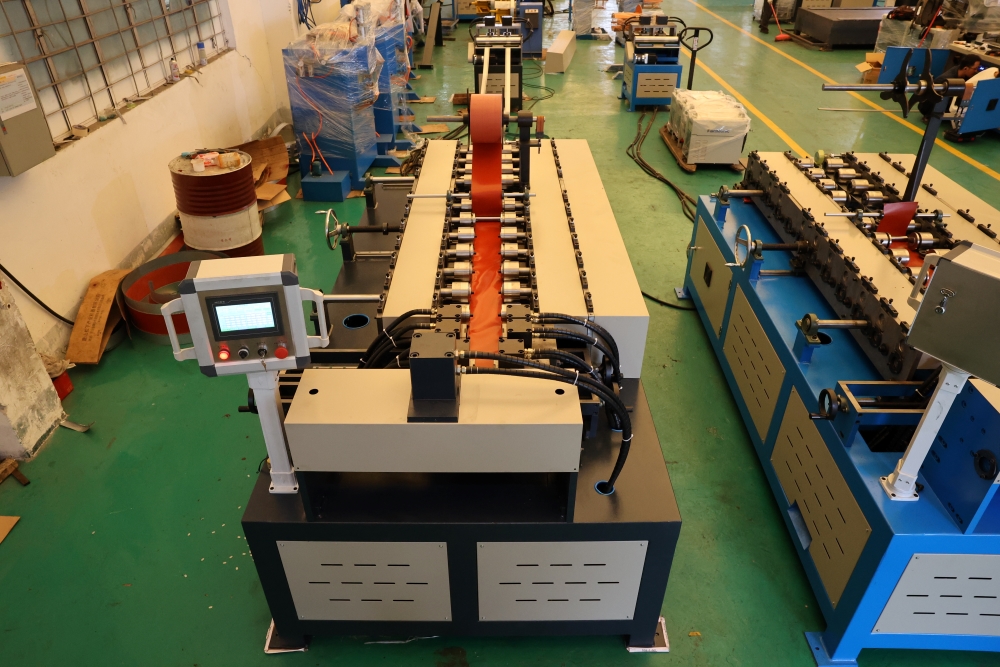

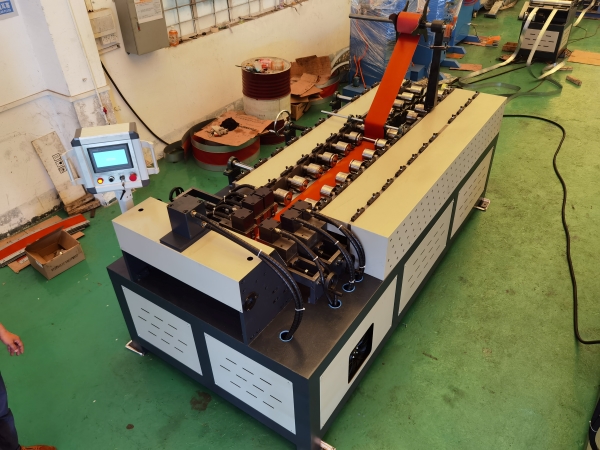

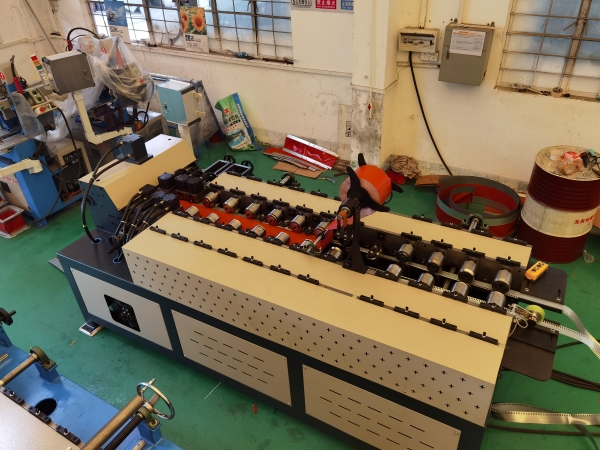

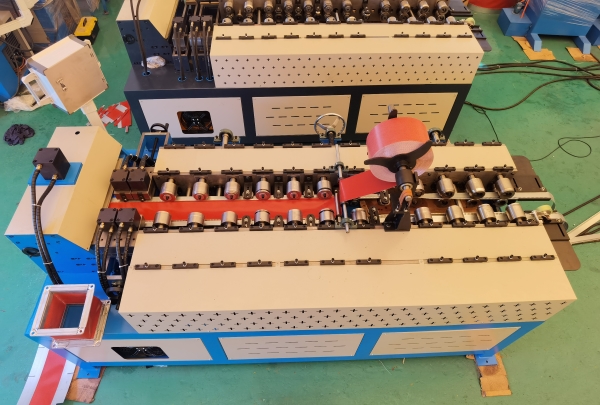

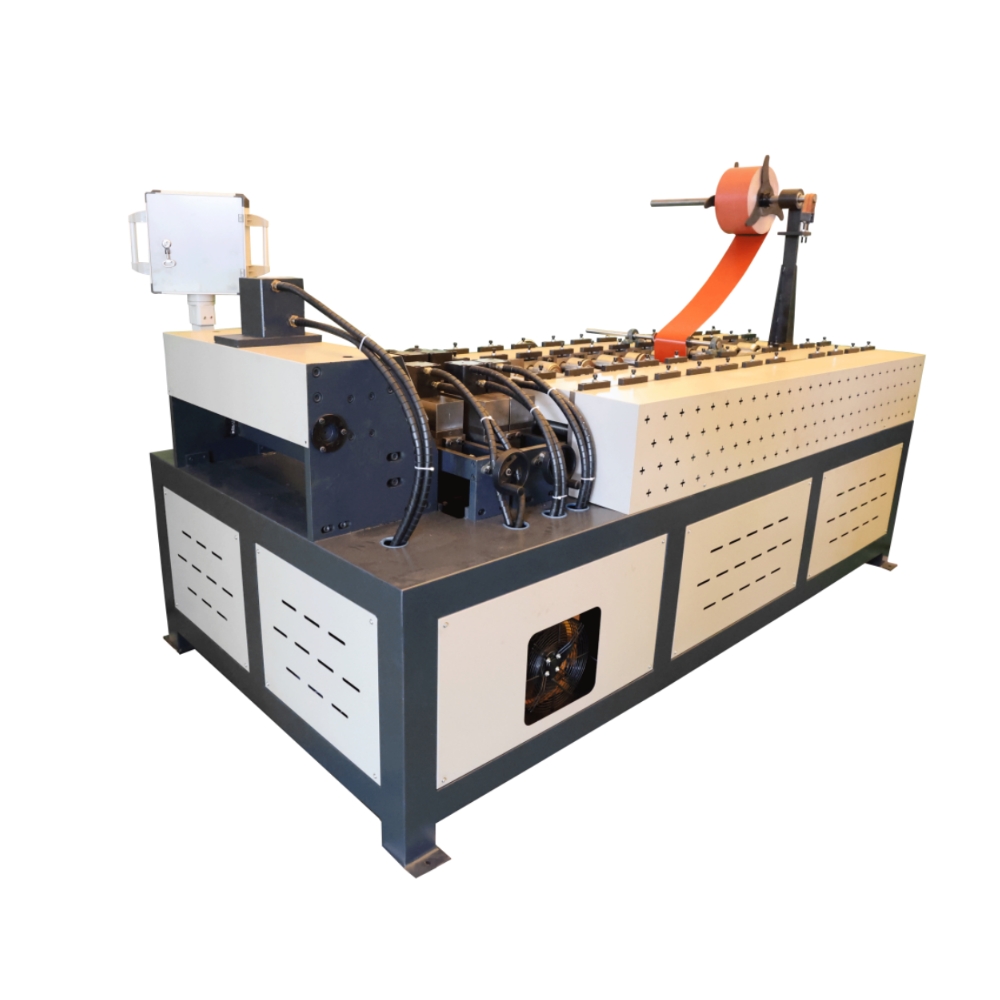

AutoFlex Duct Connector Roll Forming Line – it is composed of Feeding ,Oval hydraulic punching , roll forming,Notching (optional) and Cutting.

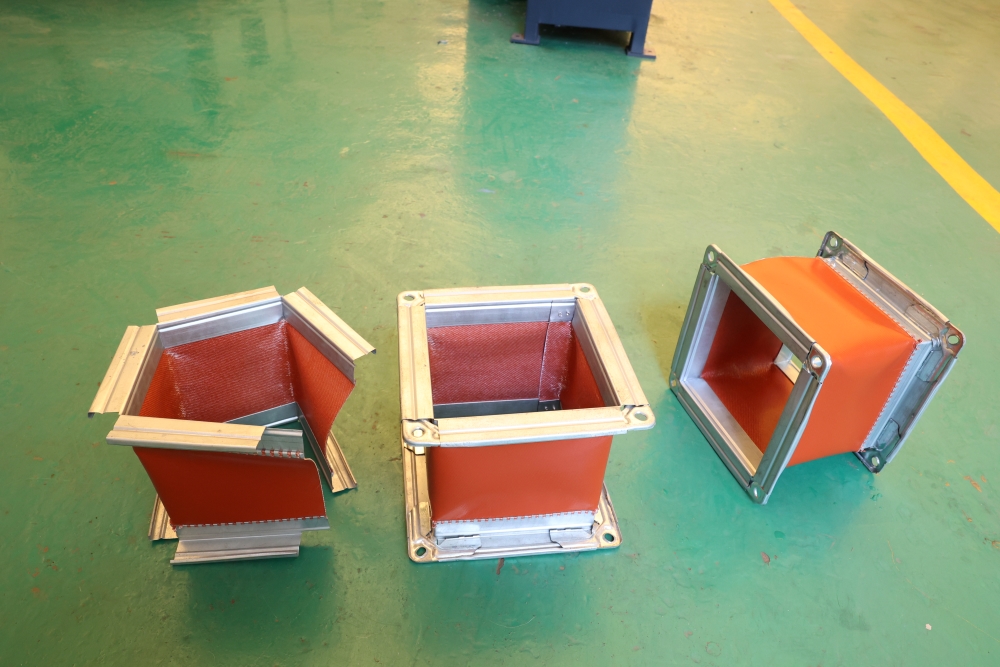

The whole lines is for making the duct connector which is widely used in round duct and squre duct connection .

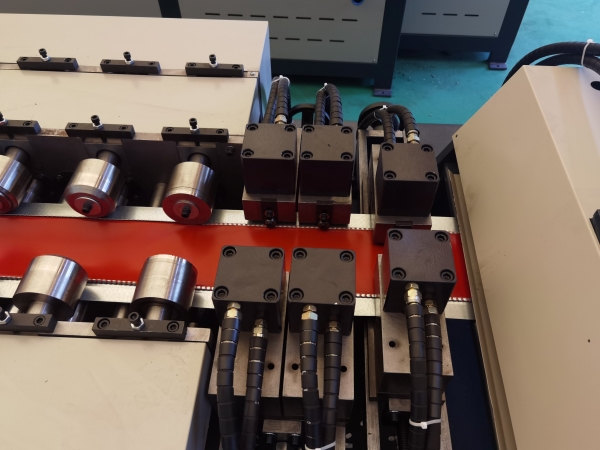

1. Hydraulic punching;
2. hydraulic automatic cutting;
3. the main control box is Schneider, the encoder is Japan Omron, PLC and inverter are Taiwan Delta and the hydraulic cylinder is Taiwan
Jiagang;
4. consist: two decoilers (bearing weight less than 800kg), hydraulic servo feeder, 2 sets of hydraulic punching moulds, main machine, and a holder.
 |  |
 |  |
Main Parameters:
Thickness of galvanized steel: 0.4-0.8mm
Width of galvanized steel: 50-150mm
Width of fireproof cloth: 90-300mm
Width of final product: 140-540mm
